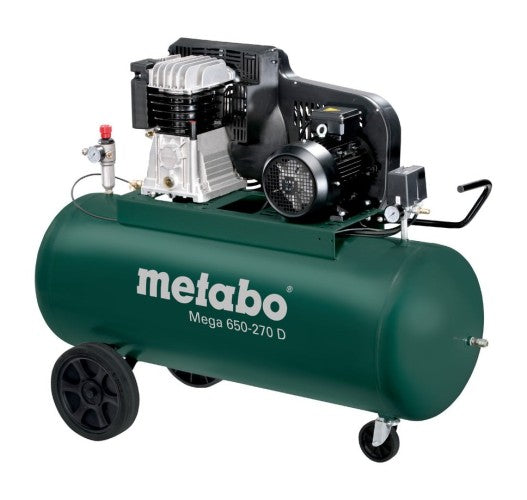

Metabo Mega 650-270 D Two-Stage Air Compressor – 270 L, 5.5 HP, 400 V

The Metabo Mega 650-270 D is a heavy-duty, two-stage belt-driven air compressor designed for professional workshops, garages, construction teams, and industrial environments requiring high and consistent air output. Built as part of Metabo’s Heavy Duty Mega series, this compressor is engineered for continuous operation and long service life.

Key Features

• Powerful 5.5 HP (4 kW) three-phase motor
• Two-stage cast-iron pump for high output and pressure stability
• 270-litre air tank for extended tool runtime
• High airflow suitable for professional and industrial pneumatic tools
• Belt-driven system for reduced vibration and lower wear
• Low-RPM pump design for long service life
• Large cooling system with protective metal guard

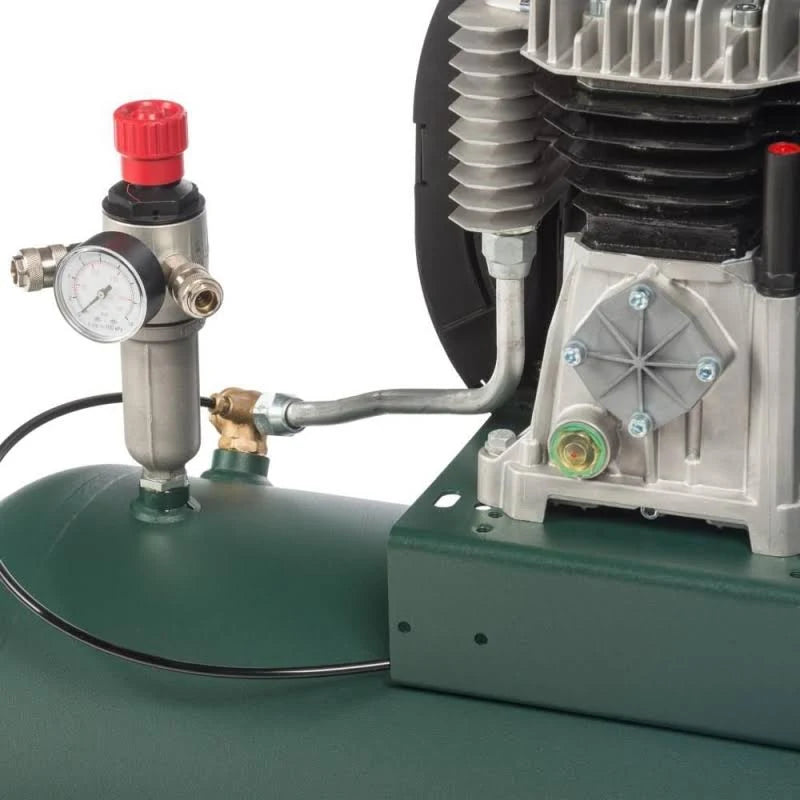

• Integrated pressure regulator with dual manometers
• Steel frame with wheels and front stabiliser for workshop mobility

Technical Specifications

• Pump type: Two-stage, cast iron
• Motor power: 5.5 HP (4 kW)
• Voltage: 400 V / 50 Hz (three-phase)
• Tank capacity: 270 L
• Air displacement: ~650 L/min
• Effective air output: ~520 L/min
• Maximum pressure: 11 bar
• Pump speed: ~1,050 rpm
• Drive type: Belt-driven
• Lubrication: Oil-lubricated
• Noise level: ~97 – 99 dB(A)
• Weight: ~145 – 150 kg
• Dimensions: approx. 1,550 × 600 × 1,200 mm

What’s Included

• Metabo Mega 650-270 D air compressor
• Pressure regulator with dual gauges (manometers)
• Safety valve and tank drain
• Wheels and front stabiliser
• User manual

Condition

Brand New
Factory tested

Warranty

3 Years
