Humbaur HT 203116 – Tandem-Axle Aluminium Flatbed Trailer (2,000 kg)
Humbaur HT 203116 – Tandem-Axle Aluminium Flatbed Trailer (2,000 kg)

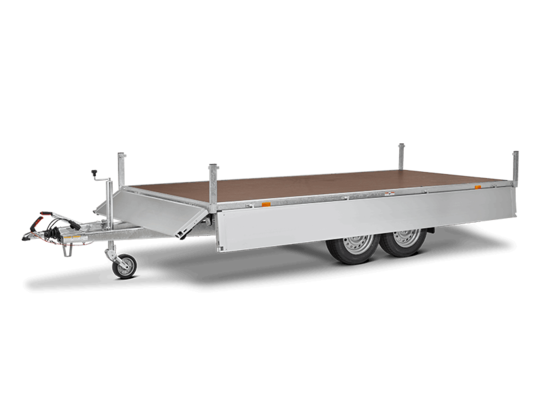

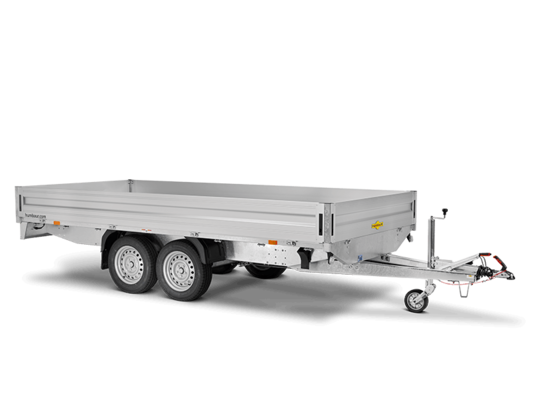

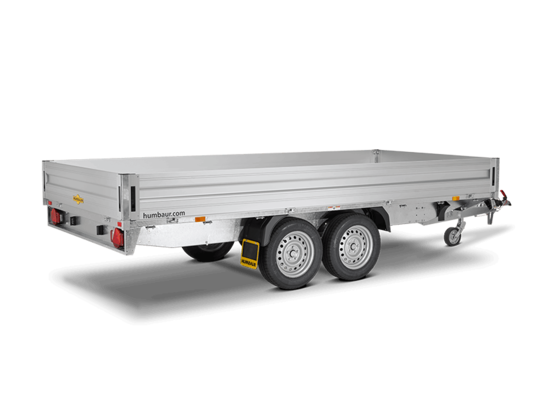

The Humbaur HT 203116 is a heavy-duty tandem-axle aluminium flatbed trailer with a 2,000 kg gross vehicle weight (GVW) built for professional work. Its robust hot-dip galvanised chassis, removable aluminium side panels and integrated lashing rings make it ideal for transporting construction materials, landscaping equipment, garden machinery, pallets and general cargo.
Key Features
-
Tandem-axle (double axle) braked trailer
-
2,000 kg gross vehicle weight (GVW)
-
Hot-dip galvanised V-drawbar and chassis for corrosion resistance
-
Aluminium drop-down side panels with recessed locks
-
13-pin lighting connector with reversing light
-
18 mm plywood deck (anti-slip)
-
Integrated lashing rings certified by DEKRA (400 kg load rating)
-
Jockey wheel included
-
Designed for intensive professional use
Technical Specifications
| Specification | Value |
|---|---|
| Trailer type | Tandem-axle flatbed trailer |
| Construction | Aluminium body with galvanised chassis |
| Unladen weight | ~462 kg |
| Gross Vehicle Weight (GVW) | 2,000 kg |
| Payload | ~1,538 kg |
| Internal loading length | 3,100 mm |
| Internal loading width | 1,650 mm |
| Internal side height | 300 mm |
| Total length | 4,514 mm |
| Total width | 1,713 mm |
| Loading height | ~720 mm |
| Axles | 2 (braked) |
| Wheels | 13 inch tyres |
| Electrical connection | 13-pin lighting connector |
What’s Included
-
Humbaur HT 203116 flatbed trailer
-
Aluminium drop-down side panels
-
Hot-dip galvanised chassis and V-drawbar
-
18 mm anti-slip plywood deck
-
Integrated lashing rings
-
Braked tandem axles
-
Jockey wheel
-
13-pin lighting system with reversing light
-
User documentation
Condition & Warranty
