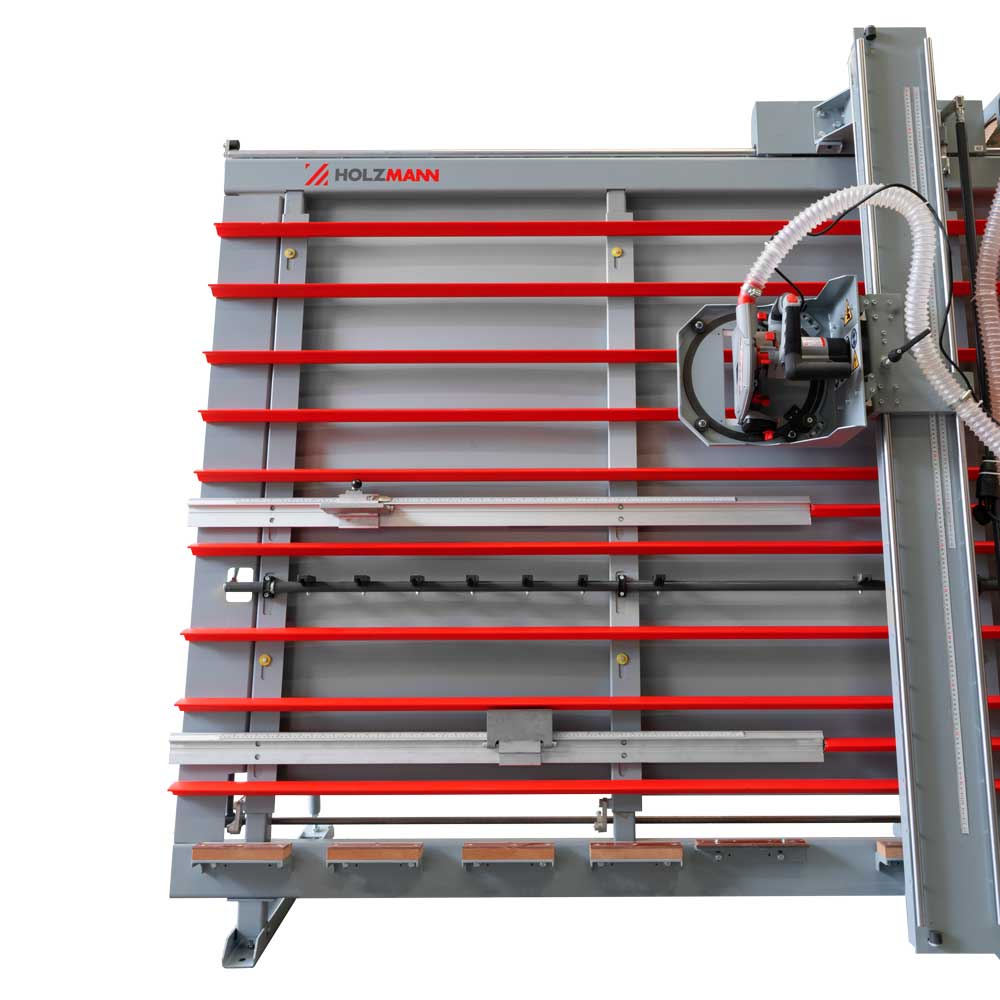

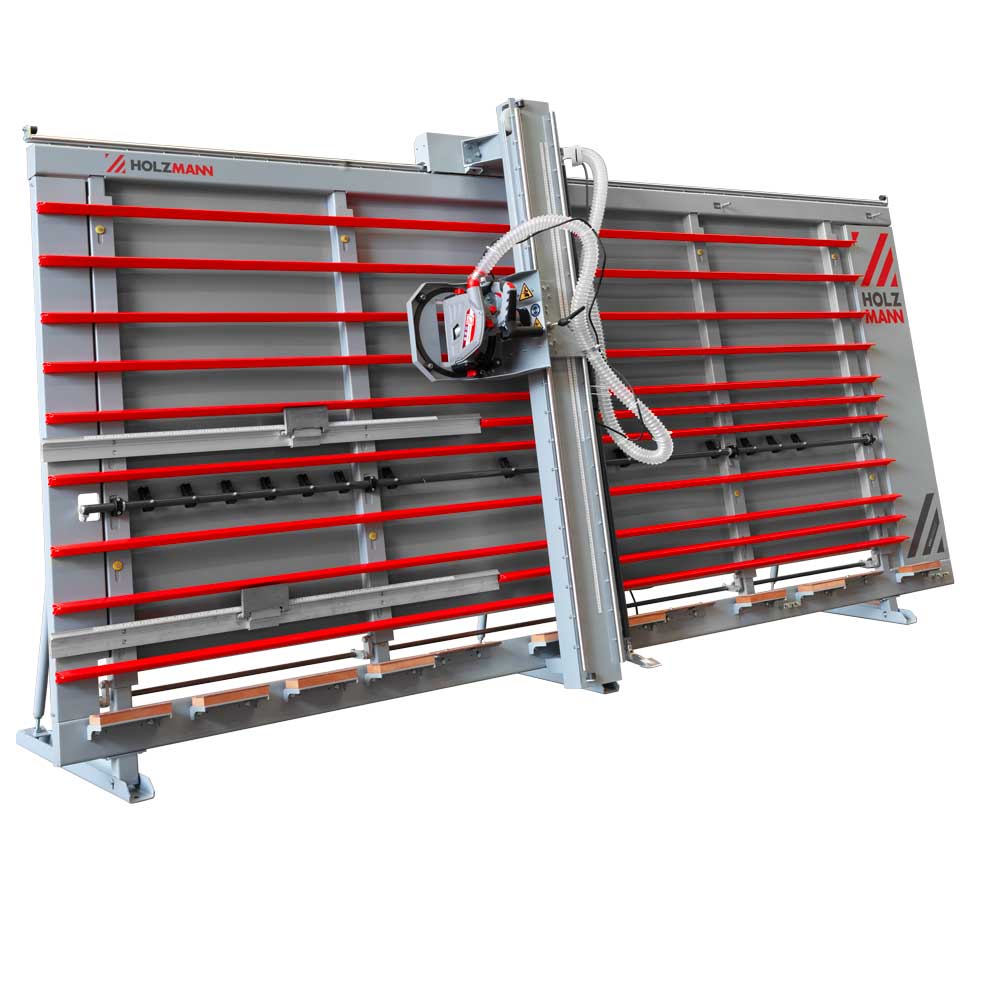

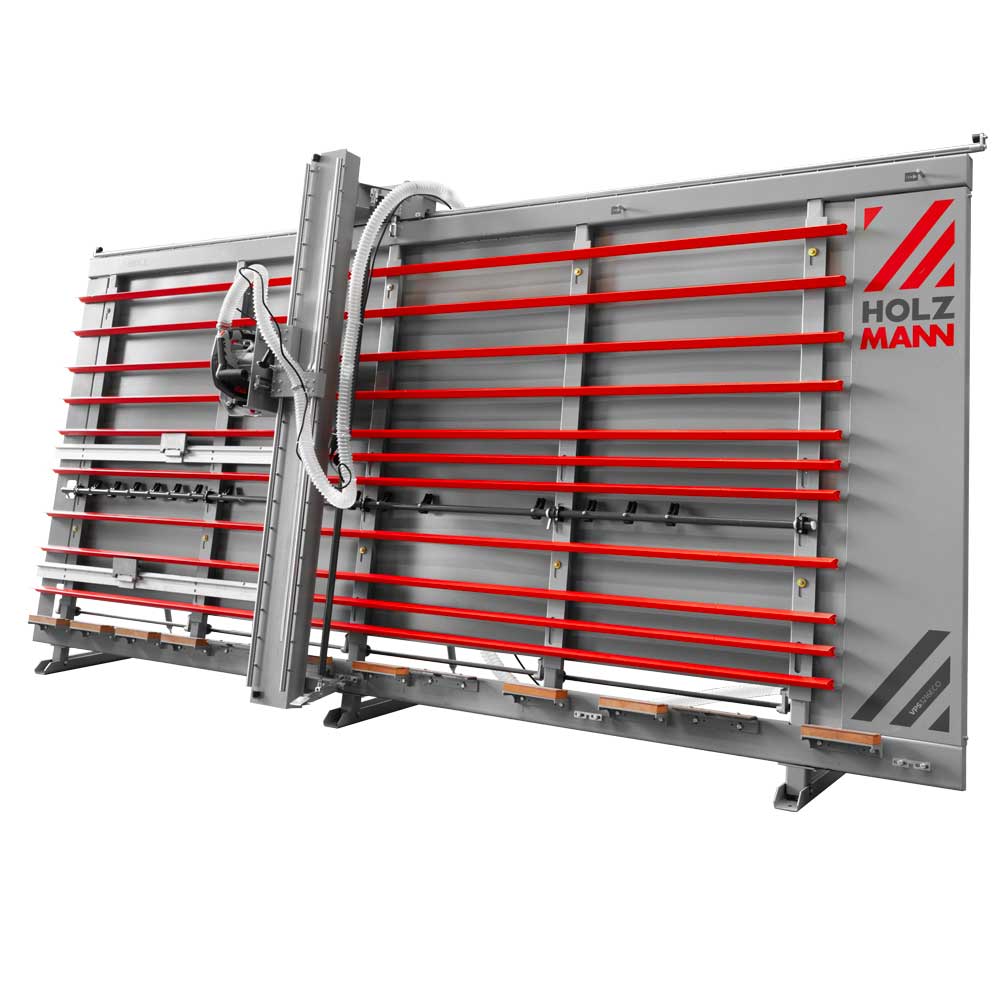

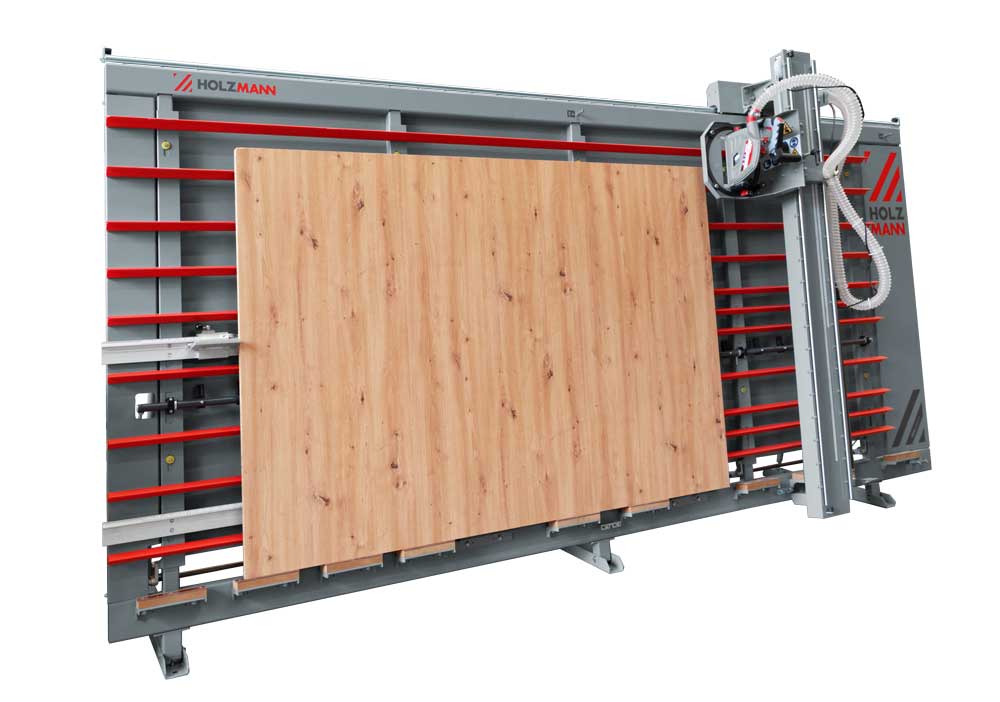

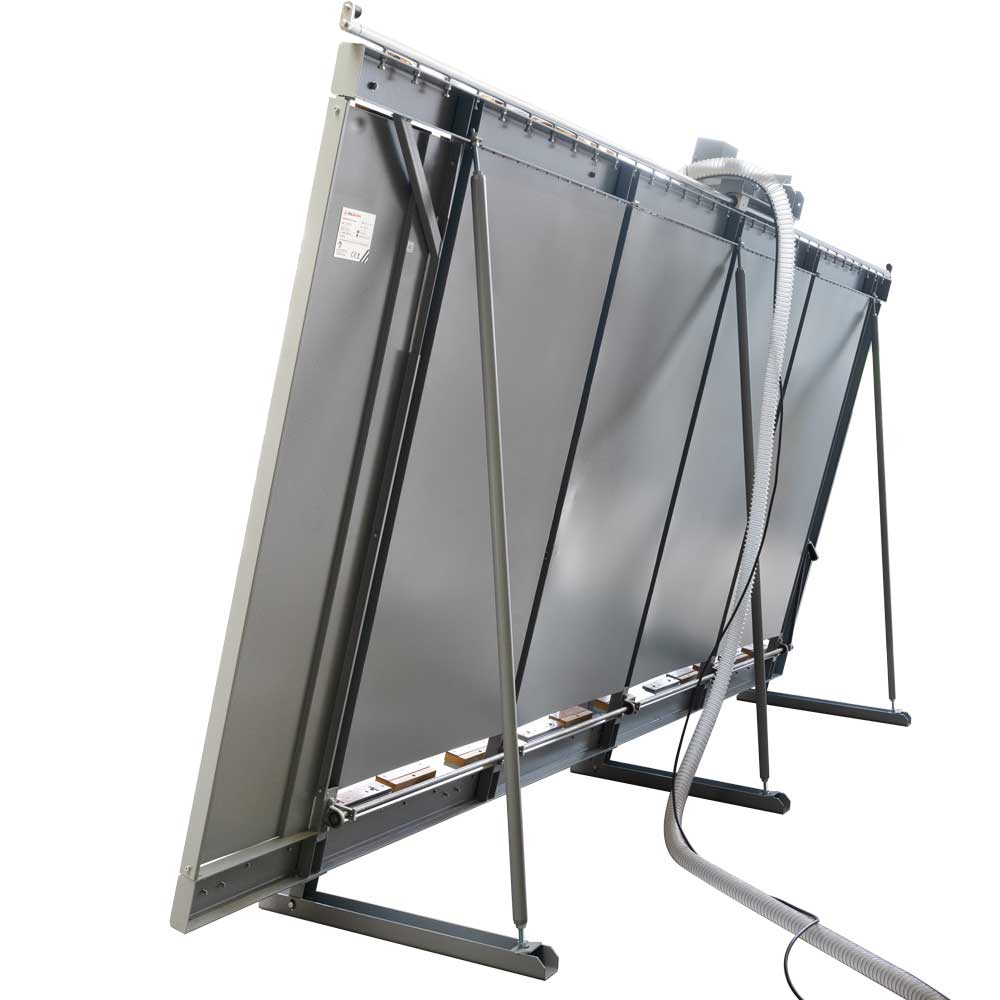

The Holzmann VPS3216ECO 230 V Vertical Panel Saw is a heavy-duty panel cutting solution designed for accurate and efficient processing of large sheet materials. Capable of handling panels up to 3,200 mm wide and 1,600 mm high, this machine is ideal for woodworking workshops, furniture manufacturing, and panel processing environments where space efficiency and precision are essential.
Key Features
Vertical panel saw for large-format sheet materials
Maximum panel capacity: 3,200 × 1,600 mm

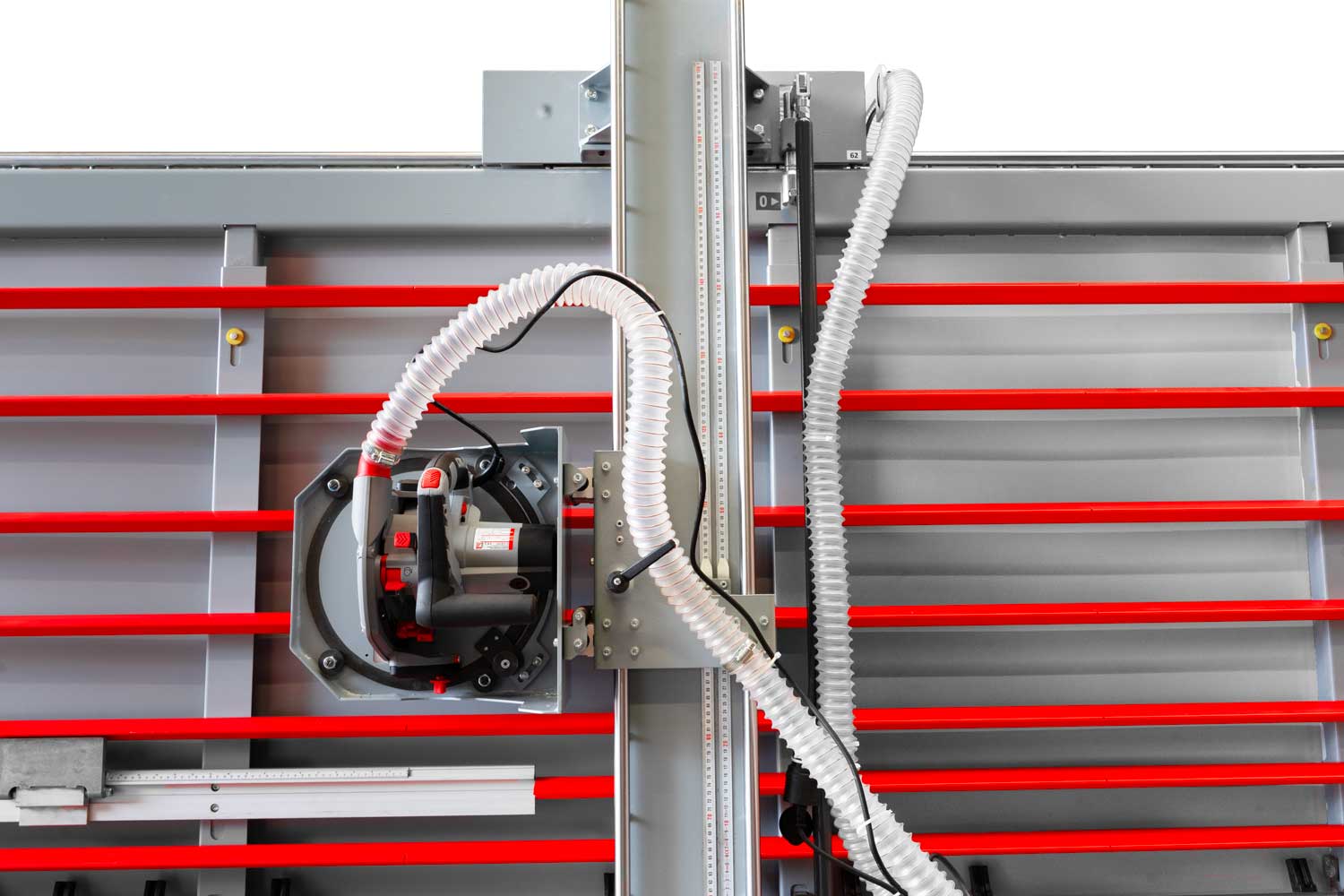

Supplied with TAS165PRO plunge saw unit
Suitable for MDF, plywood, particleboard, and laminated panels
Manual horizontal and vertical cutting operation
Adjustable slatted support frame with mechanical stops
Tilt cutting capability up to 45°
Space-saving vertical design for workshop environments
Technical Specifications
Power supply: 230 V / 50 Hz
Motor power: 1,400 W
Maximum panel width (horizontal): 3,200 mm
Maximum panel height (vertical): 1,600 mm
Minimum workpiece length: 520 mm
Minimum workpiece width: 230 mm
Saw blade type: Plunge saw (TAS165PRO)
Blade dimensions: Ø 165 × 20 × 2.5 mm
Saw blade speed: ~2,000 – 5,000 rpm
Cutting angle: 0° – 45°
Machine dimensions (L × W × H): ~4,080 × 950 × 2,220 mm
