Güde GHS 1000/14TEZA Log Splitter – 14 Ton, 400 V / PTO Drive

The Güde GHS 1000/14TEZA is a powerful 14-ton professional log splitter designed for demanding firewood preparation in workshops, farms, and forestry environments. With a splitting length of up to 1,000 mm and the ability to process logs up to 430 mm in diameter, this machine is ideal for large-diameter and long timber.

Key Features

• Powerful 14-ton splitting force
• Dual drive: 400 V electric motor or tractor PTO
• Integrated 4,300 W electric motor
• Combined two-pump hydraulic system
• Two selectable splitting stroke speeds
• Hydraulic log lifter for heavy timber
• Support boom for secure lifting and positioning

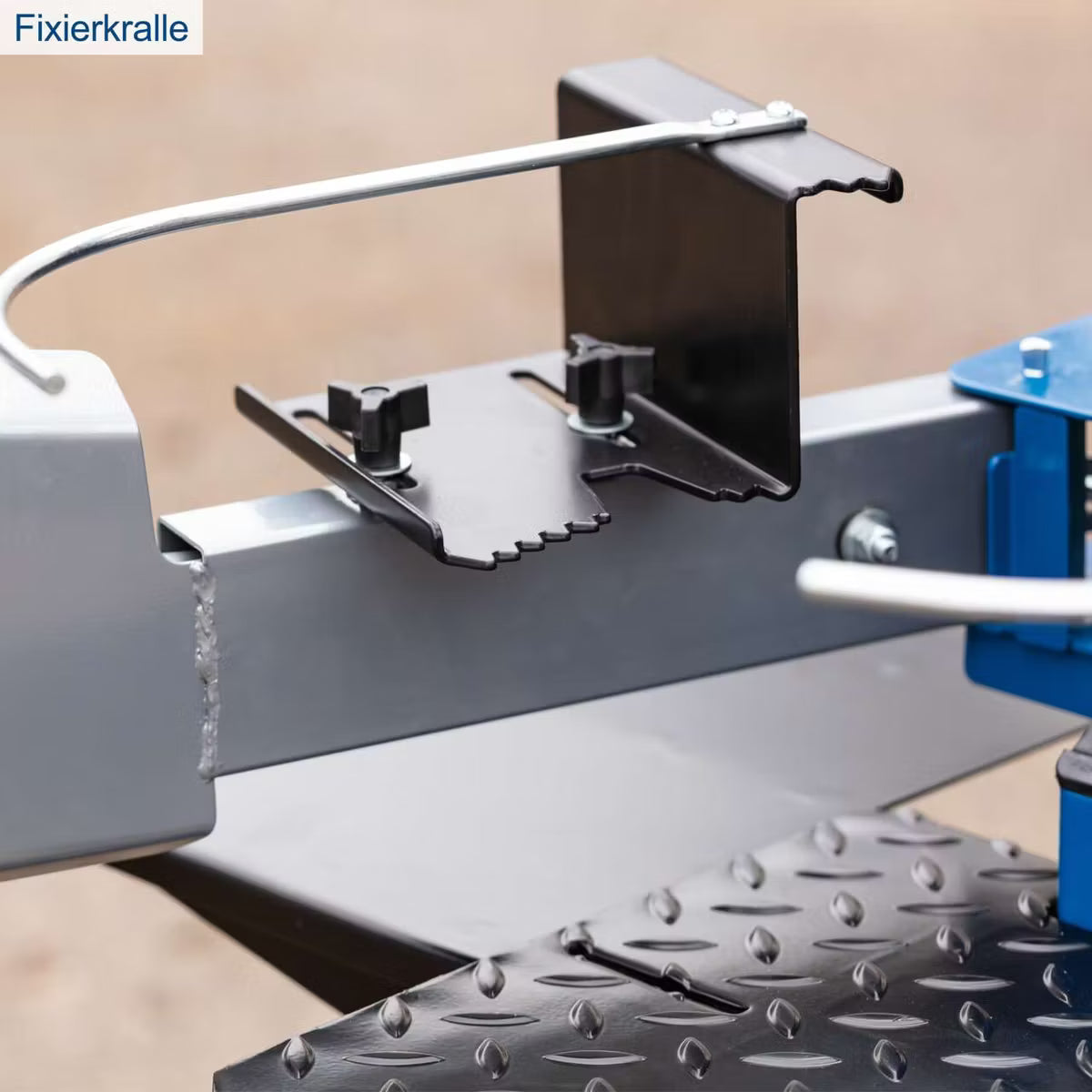

• Log fixing device for stable splitting
• Special-steel splitting wedge for long service life
• Split log catcher on both sides
• Automatic wedge return with safety shut-off

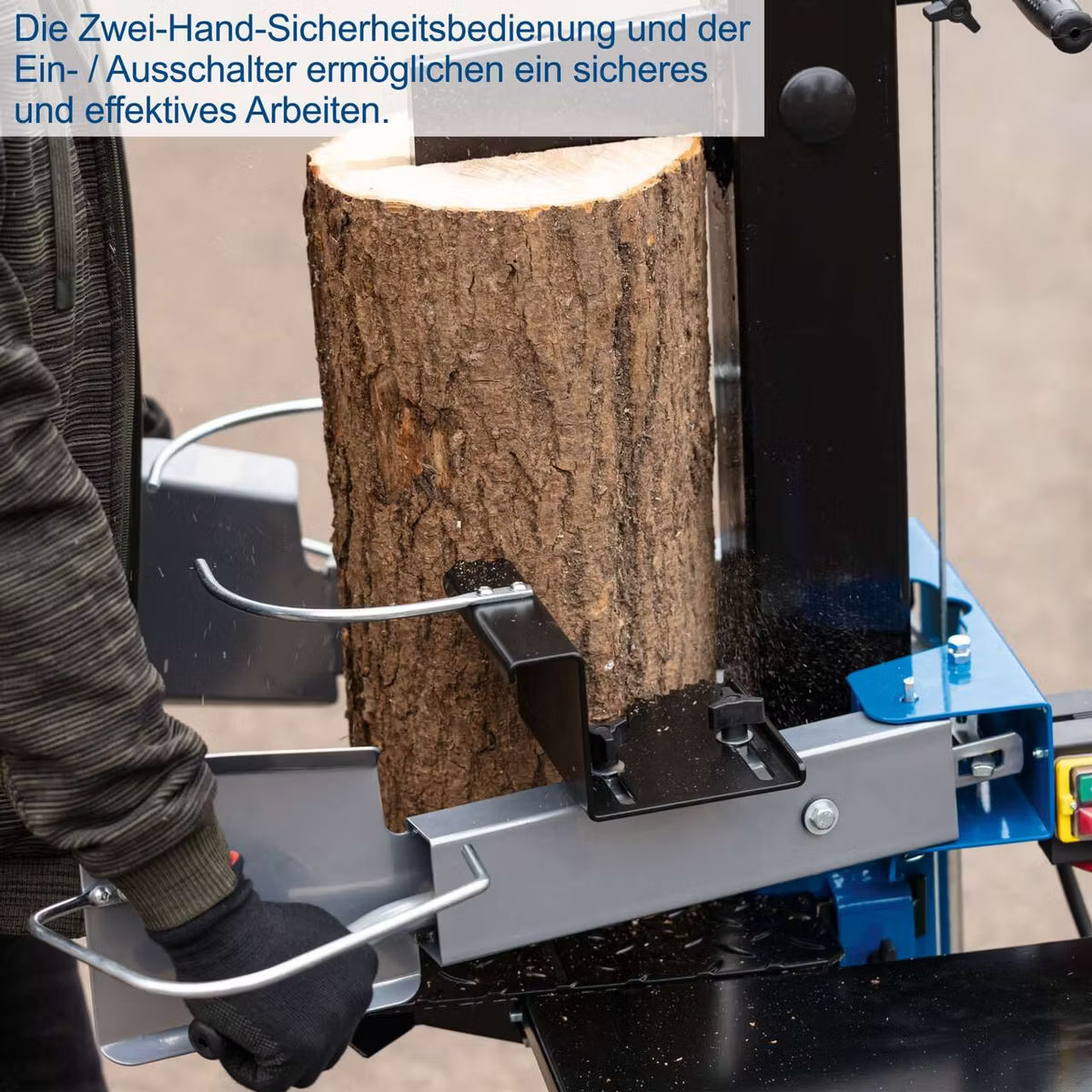

• Two-hand safety operation
• Three-point linkage CAT I for tractor use
• Pluggable transport drawbar for easy maneuvering

Technical Specifications

• Splitting force: 14 t
• Power supply: 400 V / PTO
• Motor power: 4,300 W
• Log diameter: 150 – 430 mm
• Splitting length: 330 – 1,000 mm
• Forward speed: 3.8 – 20 cm/s
• Return speed: 4.7 cm/s
• Hydraulic system: Dual pump
• Sound power level: 97 dB(A)
• Weight: approx. 232 kg

What’s Included

• Güde GHS 1000/14TEZA log splitter
• Integrated electric motor (400 V)
• PTO gearbox and CAT I three-point linkage
• Hydraulic log lifter
• Split log catchers (both sides)
• Transport drawbar
• Safety control system
• User manual
• Condition: Brand New
• Warranty: 3 Years
