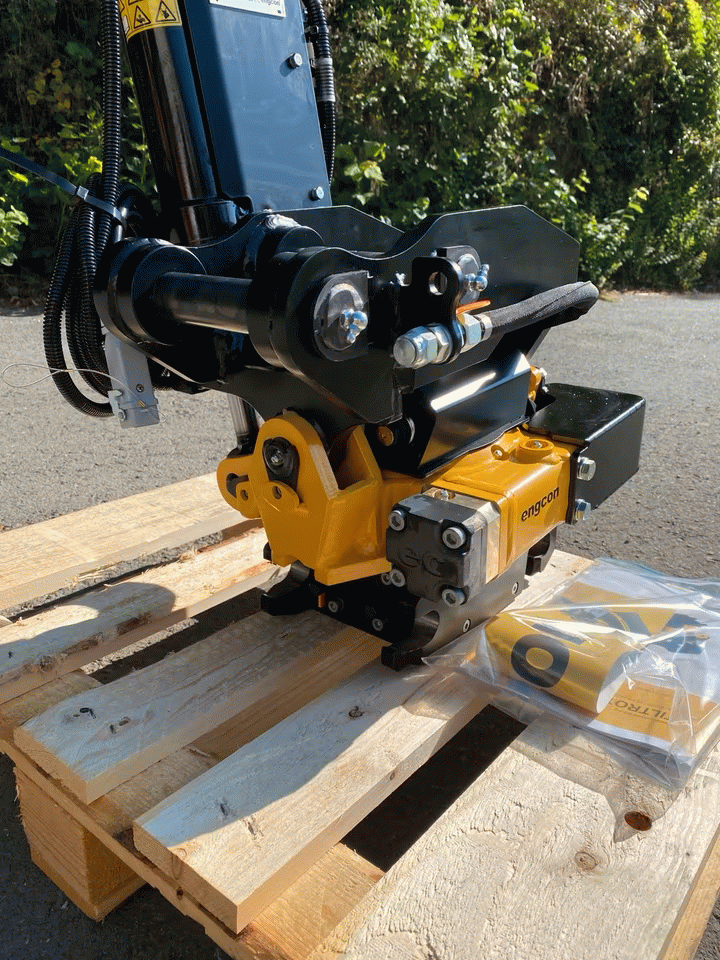

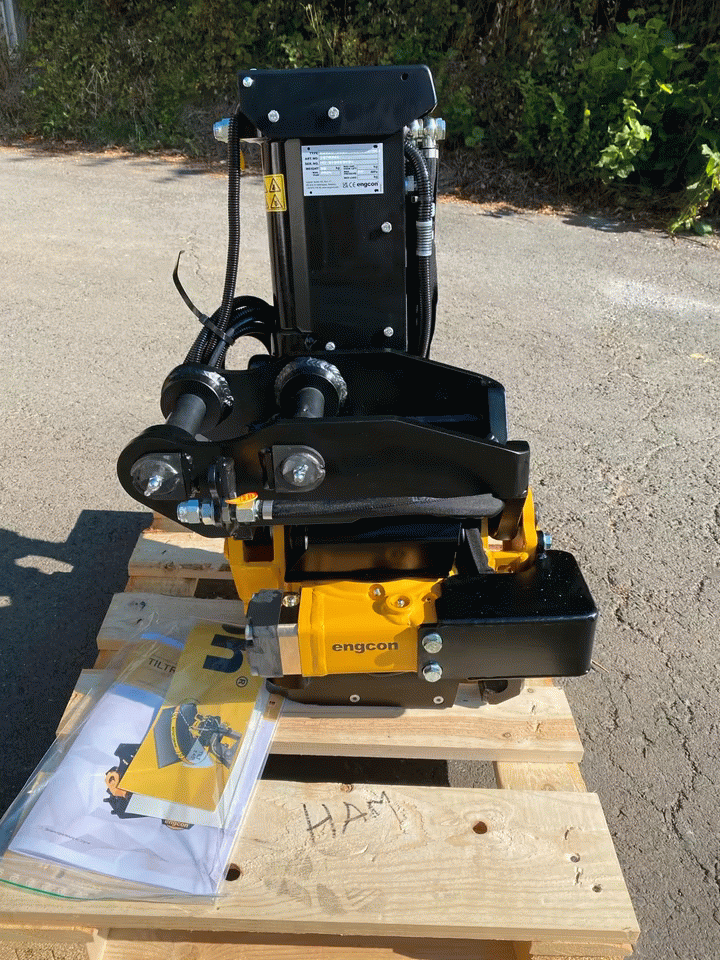

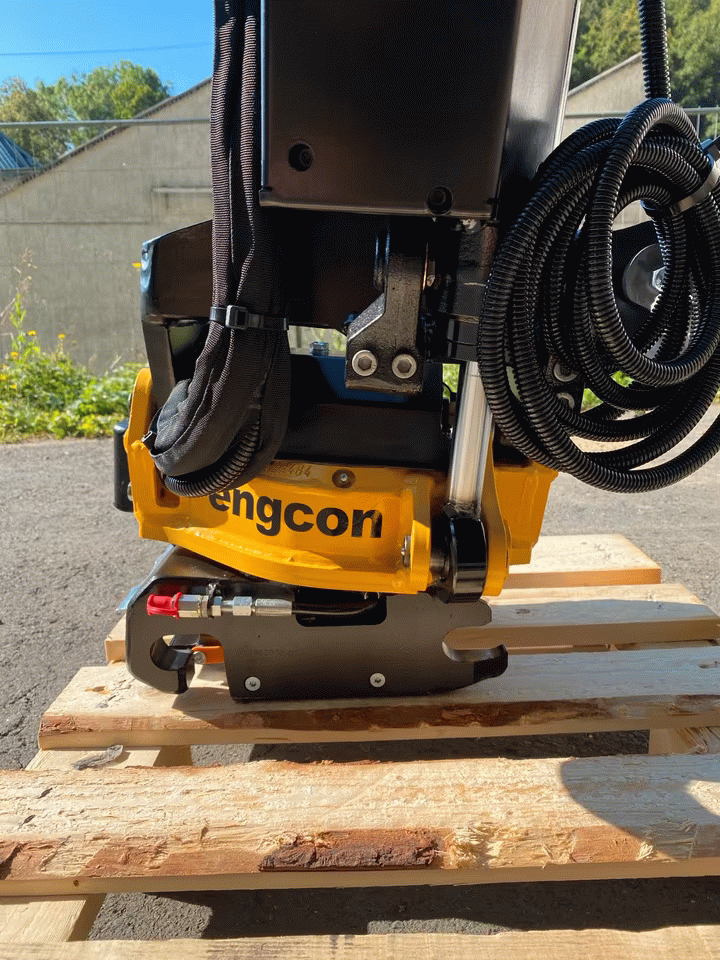

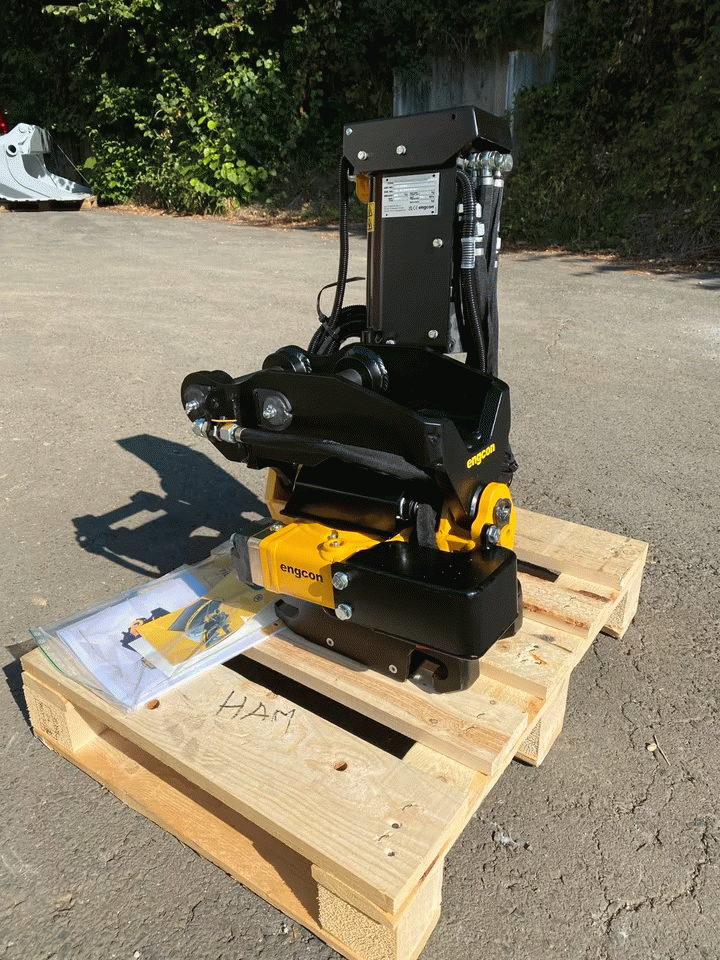

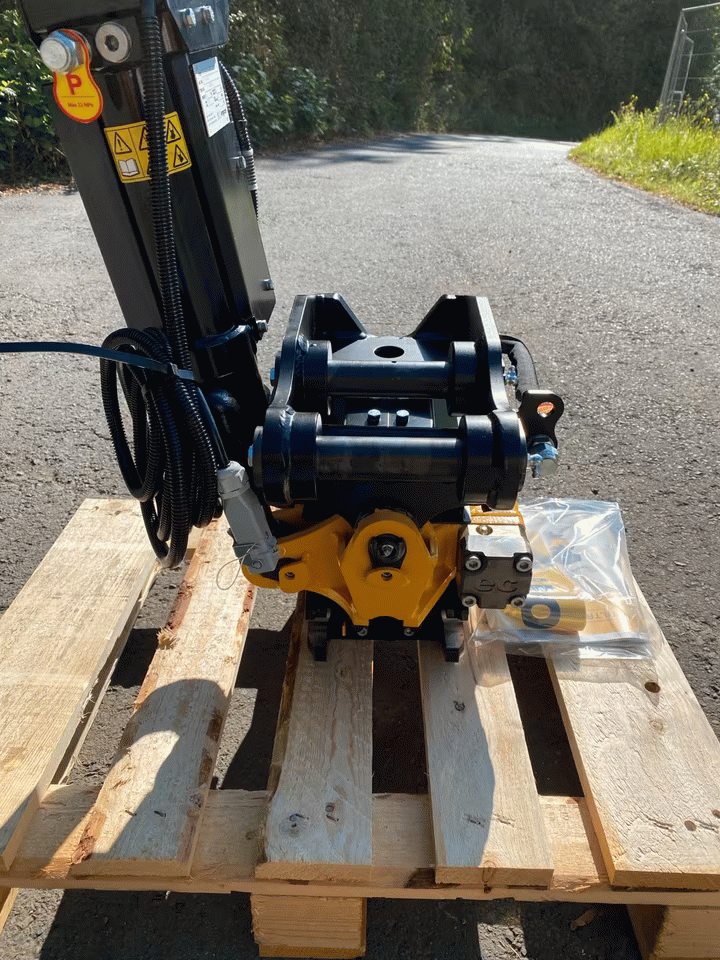

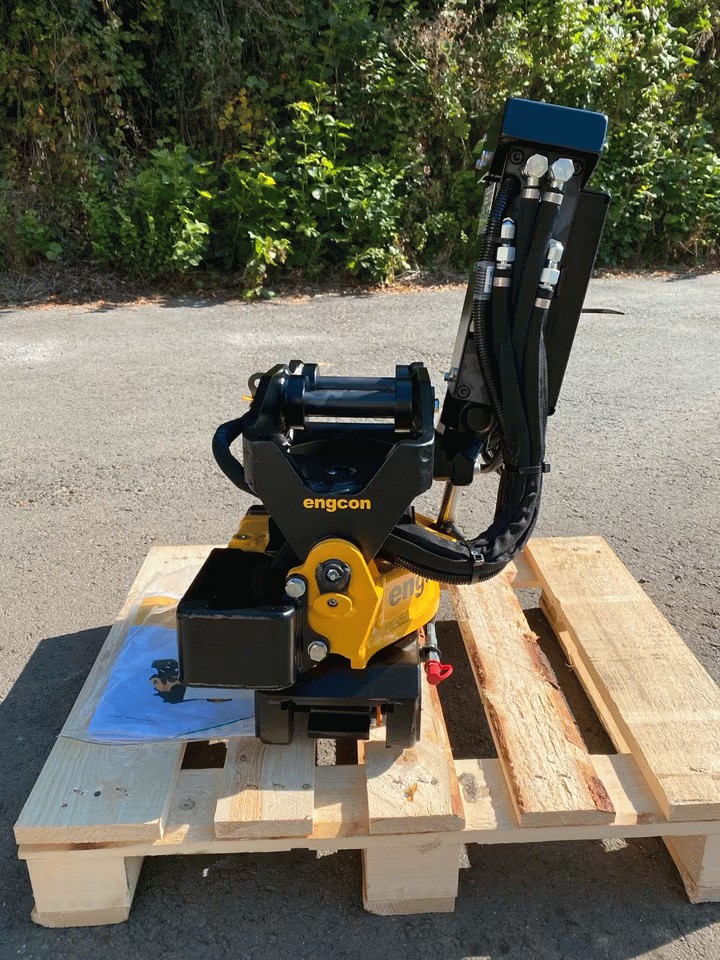

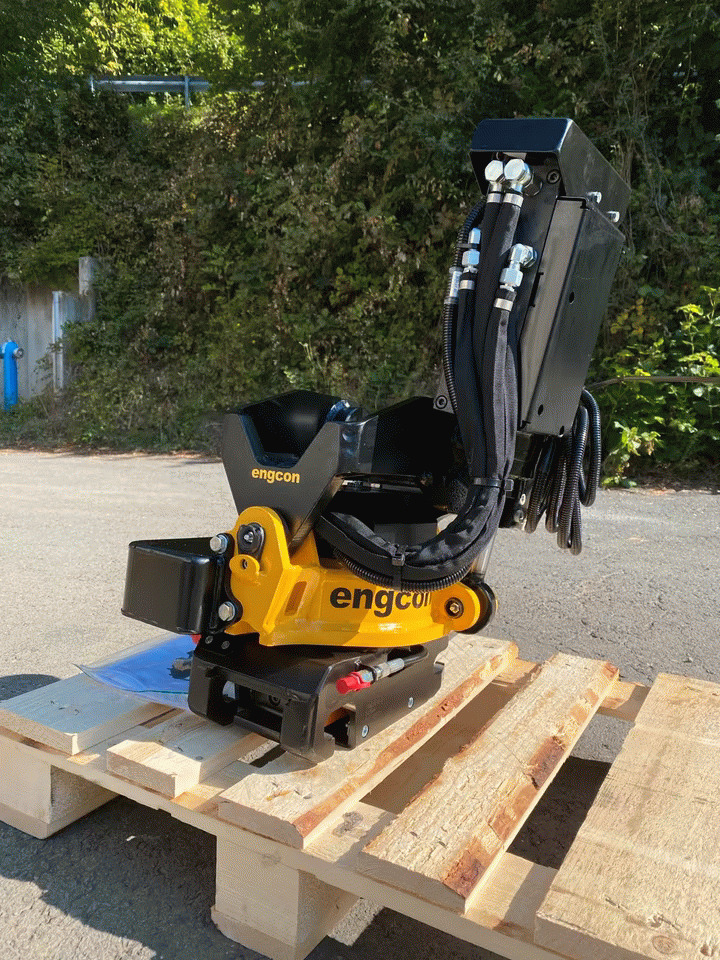

The Engcon EC02B is an ultra-compact professional tiltrotator engineered for excavators in the 1.5–3 tonne class, delivering infinite 360° rotation and ±45° tilt for exceptional precision in confined and detailed work.

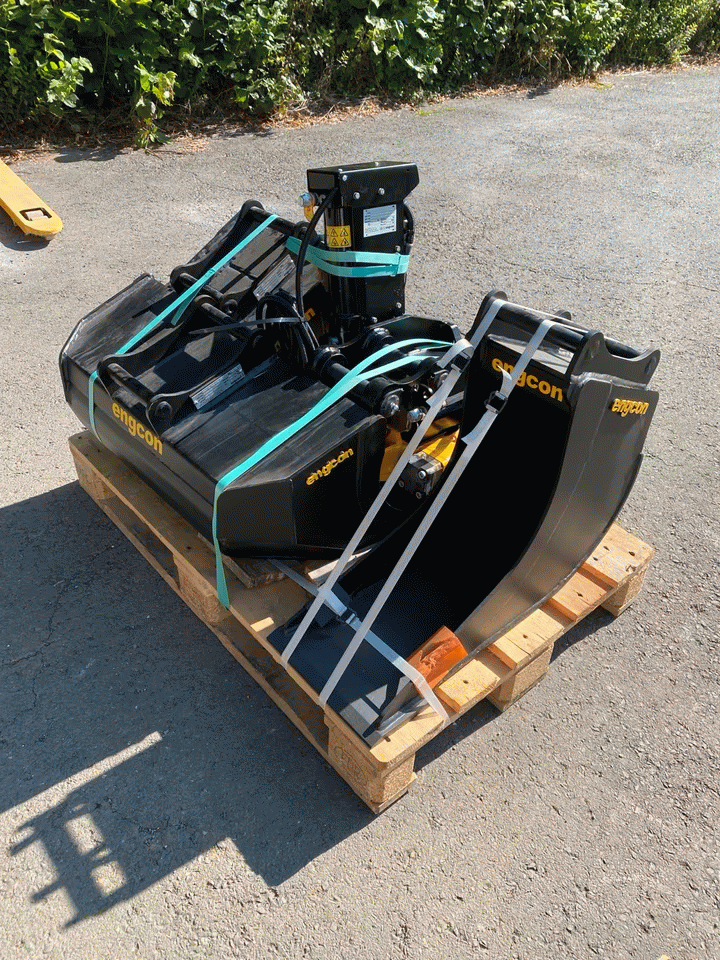

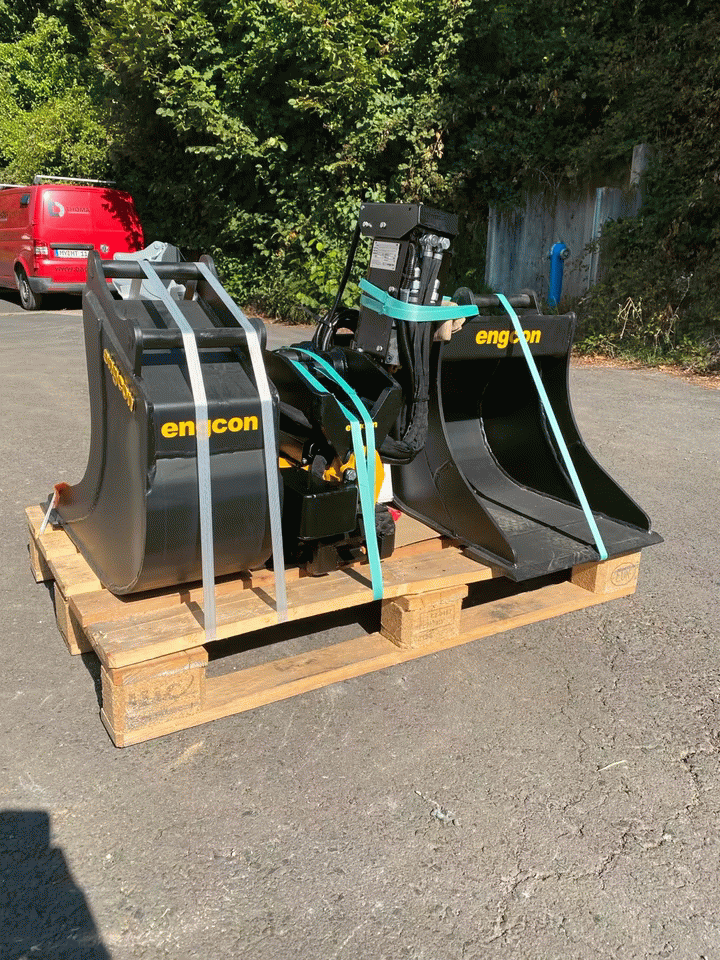

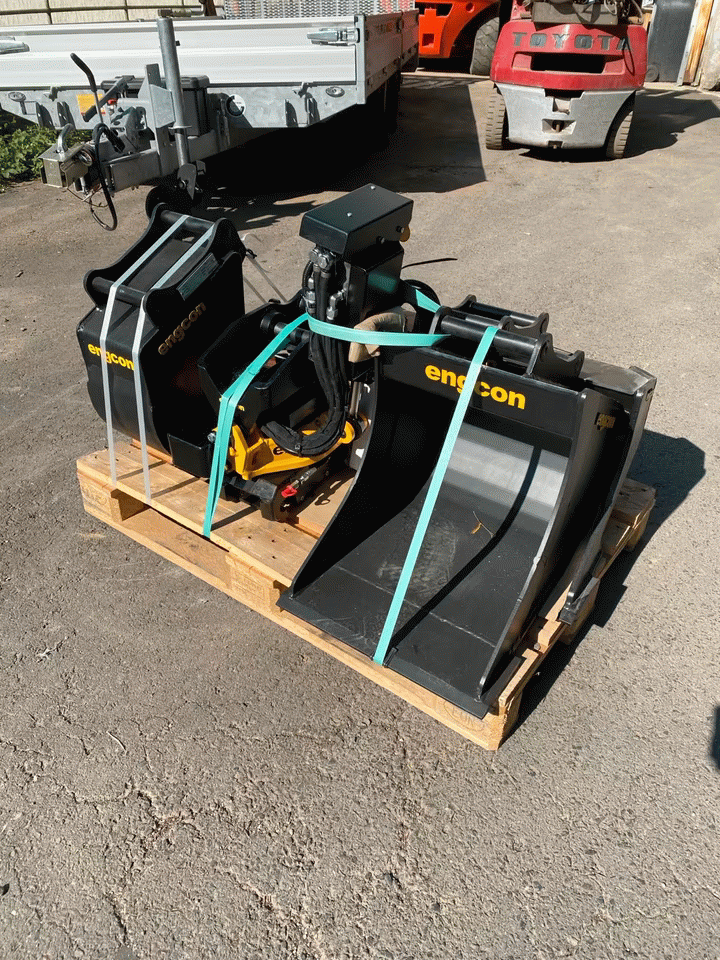

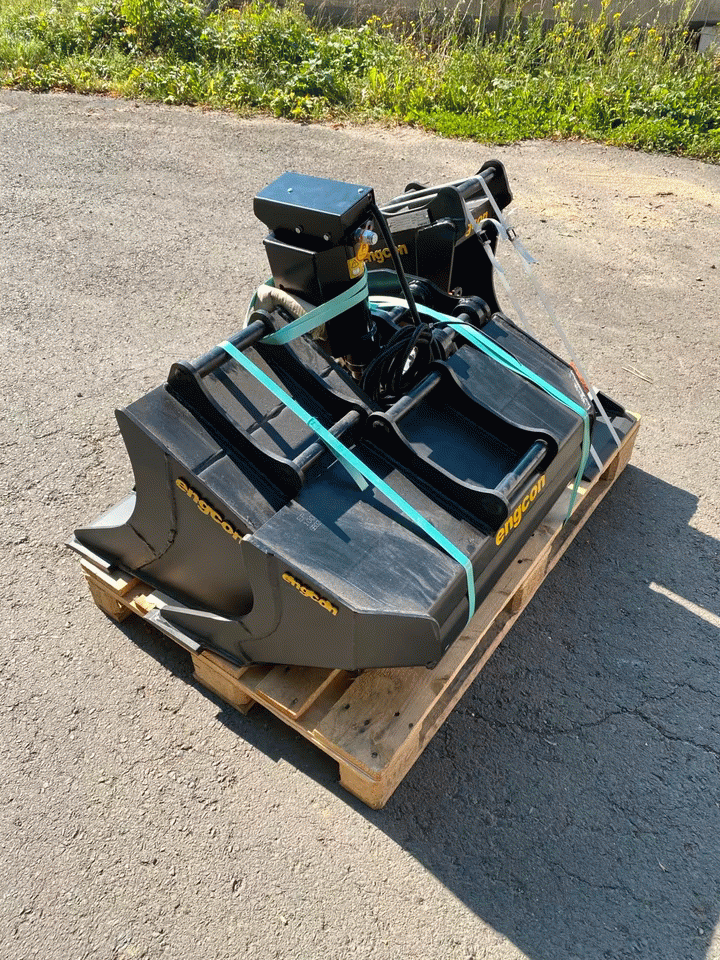

Included Bucket Package (S30 Hitch)
- Trenching bucket – 250 mm
- Digging bucket – 400 mm
- Grading / ditching bucket – 800 mm
Key Features
- For excavators 1.5–3 tonnes
- Infinite 360° rotation
- ±45° tilt angle
-
Sandwich construction for fast attachment changes
- S30 quick-coupler system
-
Hydraulic open/close function
- Lightweight design to preserve breakout force
- Single central grease point for simplified maintenance
- Durable cast-steel construction
- Ideal for landscaping, trenching, utilities, foundations, and municipal work

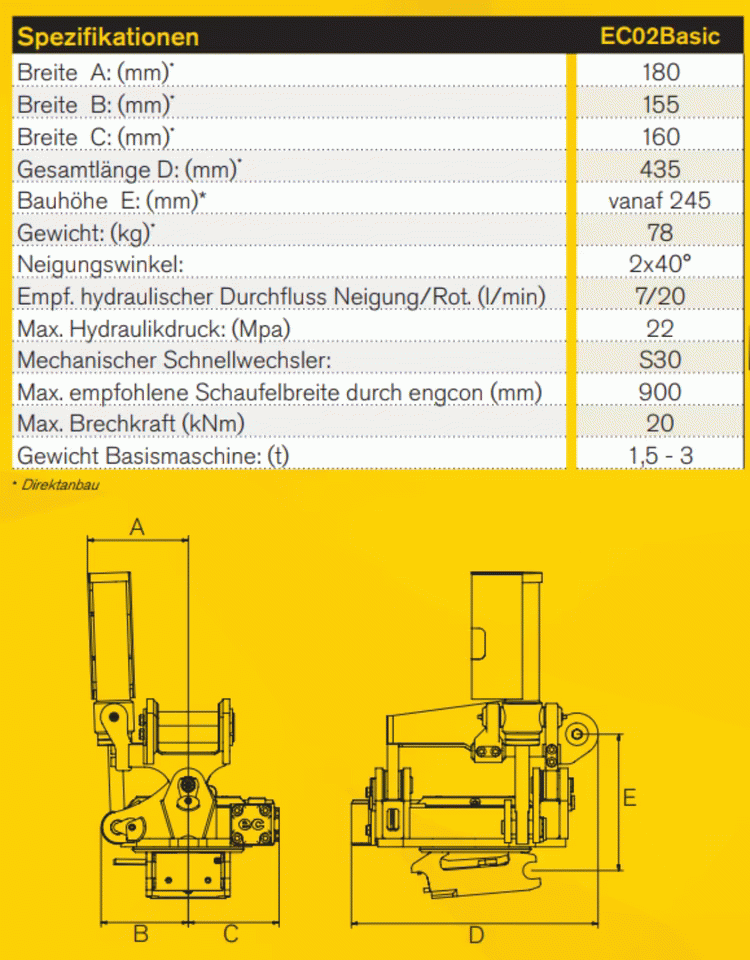

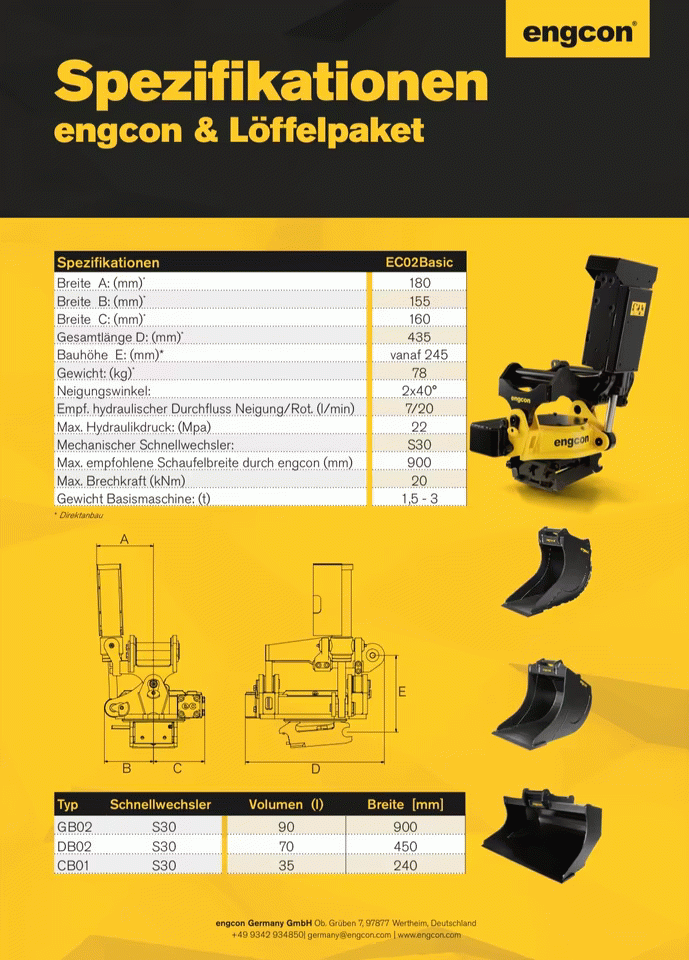

Technical Specifications
| Specification |
Value |
| Excavator weight class |
1.5–3 t |
| Tilt angle |
±45° |
| Rotation |
Infinite (360°) |
| Coupler system |
S30 |
| Opening / closing |
Hydraulic |
| Construction |
Sandwich |
| Weight |
~85–95 kg (depending on hitch) |
| Max hydraulic pressure |
~22 MPa |
| Recommended oil flow |
~15–25 L/min |
| Max breakout torque |
~18–20 kNm |
What’s Included
- Engcon EC02B tiltrotator
- S30 quick-coupler sandwich setup
- Hydraulic open/close system
- 3-bucket package (250 / 400 / 800 mm)
- Basic hydraulic hose kit
- User manual
Optional Accessories (Not Included)
- DC2 proportional control system
- EC-Oil automatic coupling system
- Integrated hydraulic gripper
Condition & Warranty
- Condition: Brand New – Display Model
- Factory tested
- Warranty: 3 years
